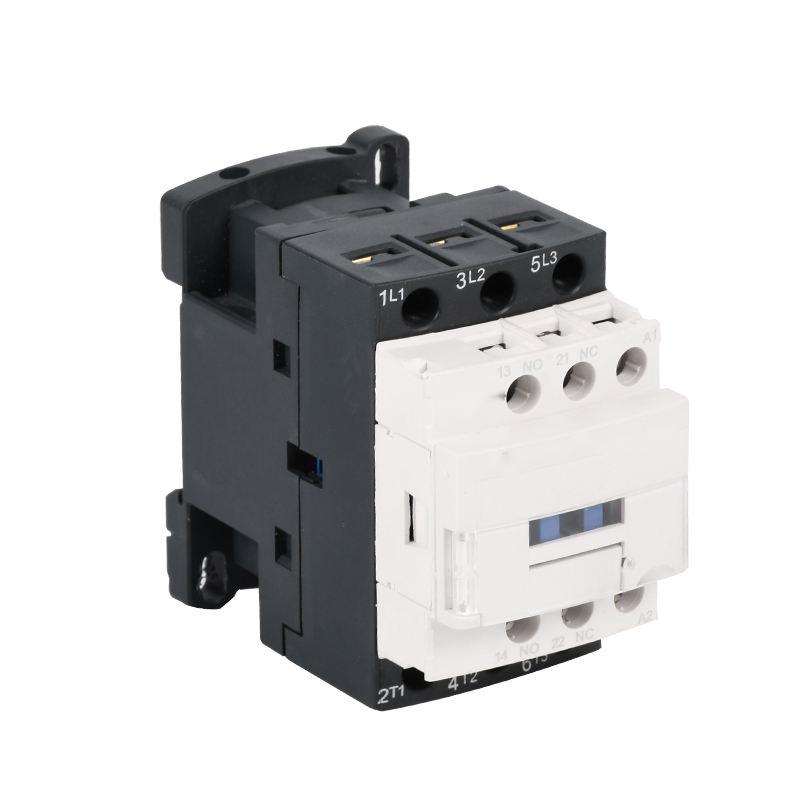

3P+NO+NC Magnetic Motor Starter Contactor D18 32A AC 220V 380V

Ask Lasest Price
Brand Name :	YOKG
Model Number :	SC1-09, SC1-12, SC1-18, SC1-25, SC1-32
Certification :	CE,TUV,CB
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T
Supply Ability :	100000pcs per Month
Delivery Time :	15days or Depends on ordering QTYS

Add to Cart

Product Details
Company Profile

3P+NO+NC Magnetic Motor Starter Contactor D18 32A AC 220V 380V

3P+NO+NC Magnetic Contactor D18 32A AC 220V 380V Motor Starter Contactor

Application:

SC1 series AC Contactor is suitable for using in the circuits of rated voltage up to 660V AC 50Hz or 60Hz, rated current up to
95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay
& machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star delta starter. With the
thermal relay,it is combined into the electromagnetic starter. The contactor is produced according to IEC 60947-4.

Main parameters and Technical Performance:

Type			SC1-09	SC1-12	SC1-18	SC1-25	SC1-32
Rated heating current (A)			20	20	25	32	40
Rated insulation voltage (V)			690
Rated impact withstand voltage (KV)			6
Rated making capacity			10le
Rated breaking capacity			8le
Poles			3
Auxiliary contact			1NO + 1NC
Short-time withstand current(A)	10S		72	96	144	200	256
AC-3 Rated working current(A)	220V/230V		9	12	18	25	32
	380V/400V		9	12	18	25	32
	660V/690V		6.5	8.9	12	18	22
AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW	220V/230V		2.2	3	4	5.5	7.5
	380V/400V		4	5.5	7.5	11	15
	660V/690V		5.5	7.5	10	15	18.5
Operation frequency (times/h)	Electrical life		1200				600
	Mechanical life		3600
AC-3 Electrical life (10000/times)			100	100	100	100	80
Mechanical life (10000/times)			1000	1000	1000	1000	800
Equipped fuse type			RT16-20	RT16-20	RT16-32	RT16-40	RT16-50
Rated control supply voltage Us(V)	50/60Hz		12～480
Operation range	Pull-in		(85%～110%)Us +40℃
	Releasing		(20%～75%)Us -5℃
Ac coil average power(VA)	Start		70			110
	Keeping		8			11
Power efficiency class			class 3
Thermal loss(W)			2～3			3～4
Actuation time(ms)	Close		12～35
	Break		5～20
Main circuit wiring	flexible wire without cold pressing terminal (㎟)	1 stick	1～4	1～4	1.5～6	1.5～10	2.5～10
		2 sticks	1～4	1～4	1.5～6	1.5～6	2.5～10
	flexible wire with cold pressing terminal (㎟)	1 stick	1～4	1～4	1～6	1～6	1～10
		2 sticks	1～2.5	1～2.5	1～4	1～4	1.5～6
	Hard wire (㎟)	1 stick	1～4	1～4	1.5～6	1.5～6	1.5～10
		2 sticks	1～4	1～4	1.5～6	1.5～6	2.5～10
	Fastening screw size		M3.5			M4
	Tightening fastening torque (N.m)		0.8			1.2
Control loop wiring	flexible wire without cold pressing terminal (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～4	1～4	1～4	1～4	1～4
	flexible wire with cold pressing terminal (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～2.5	1～2.5	1～2.5	1～2.5	1～2.5
	Hard wire (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～4	1～4	1～4	1～4	1～4
	Fastening screw size		M3.5
	Tightening fastening torque (N.m)		0.8

Installation dimension:

Type	A max	B max	C max	a	b	∅
SC1-09～18	45	77	86	35	50/60	4.5
SC1-25～32	45	85	92	35	60/70	4.5
SC1-40～65	75	127	119	40	100/110	6.5
SC1-80～95	85	127	130	40	100/110	6.5

FAQ:

1.How can we get quotations?

A:We will send quotations within 24 hours after getting your enquiry. Urgent need you can call us or send us messages via Whatsapp.

2.Can we get sample to check your quality?

A:All items sample are available.

3.Can you do the design for packing?

A:Yes. We have ad team can assist you design inner and outer box if need.

4.What is your terms of delivery?

A:Normally we work on EXW FOB CIF.
