380V Coil Ac Magnetic Contactor LC1 D09 D18 D32 D40 3 Phase 220V 9A

Ask Lasest Price
Brand Name :	YOKG
Model Number :	SC1-09,SC1-12, SC1-18,SC1-25, SC1-32
Certification :	CE,TUV,CB
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T
Supply Ability :	100000pcs per Month
Delivery Time :	15days or Depends on ordering QTYS

Add to Cart

Product Details
Company Profile

380V Coil Ac Magnetic Contactor LC1 D09 D18 D32 D40 3 Phase 220V 9A

LC1 D09 D18 D32 D40 AC Contactor 3 Phase 220V 9A 380V Coil Ac Magnetic Contactor

Genaral details:

Product Name : AC Contactor;
Model Number : SC1-09,SC1-12, SC1-18,SC1-25, SC1-32
Material : Plastic, Metal, Electrical Parts
Ui : 690V,UImp:6KV
AC-3 : 660/690V
Power : 220-230V,4KW; 380/400V,7.5KW; 660/690V,10KW

Main parameters and Technical Performance:

Type			SC1-09	SC1-12	SC1-18	SC1-25	SC1-32
Rated heating current (A)			20	20	25	32	40
Rated insulation voltage (V)			690
Rated impact withstand voltage (KV)			6
Rated making capacity			10le
Rated breaking capacity			8le
Poles			3
Auxiliary contact			1NO + 1NC
Short-time withstand current(A)	10S		72	96	144	200	256
AC-3 Rated working current(A)	220V/230V		9	12	18	25	32
	380V/400V		9	12	18	25	32
	660V/690V		6.5	8.9	12	18	22
AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW	220V/230V		2.2	3	4	5.5	7.5
	380V/400V		4	5.5	7.5	11	15
	660V/690V		5.5	7.5	10	15	18.5
Operation frequency (times/h)	Electrical life		1200				600
	Mechanical life		3600
AC-3 Electrical life (10000/times)			100	100	100	100	80
Mechanical life (10000/times)			1000	1000	1000	1000	800
Equipped fuse type			RT16-20	RT16-20	RT16-32	RT16-40	RT16-50
Rated control supply voltage Us(V)	50/60Hz		12～480
Operation range	Pull-in		(85%～110%)Us +40℃
	Releasing		(20%～75%)Us -5℃
Ac coil average power(VA)	Start		70			110
	Keeping		8			11
Power efficiency class			class 3
Thermal loss(W)			2～3			3～4
Actuation time(ms)	Close		12～35
	Break		5～20
Main circuit wiring	flexible wire without cold pressing terminal (㎟)	1 stick	1～4	1～4	1.5～6	1.5～10	2.5～10
		2 sticks	1～4	1～4	1.5～6	1.5～6	2.5～10
	flexible wire with cold pressing terminal (㎟)	1 stick	1～4	1～4	1～6	1～6	1～10
		2 sticks	1～2.5	1～2.5	1～4	1～4	1.5～6
	Hard wire (㎟)	1 stick	1～4	1～4	1.5～6	1.5～6	1.5～10
		2 sticks	1～4	1～4	1.5～6	1.5～6	2.5～10
	Fastening screw size		M3.5			M4
	Tightening fastening torque (N.m)		0.8			1.2
Control loop wiring	flexible wire without cold pressing terminal (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～4	1～4	1～4	1～4	1～4
	flexible wire with cold pressing terminal (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～2.5	1～2.5	1～2.5	1～2.5	1～2.5
	Hard wire (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～4	1～4	1～4	1～4	1～4
	Fastening screw size		M3.5
	Tightening fastening torque (N.m)		0.8

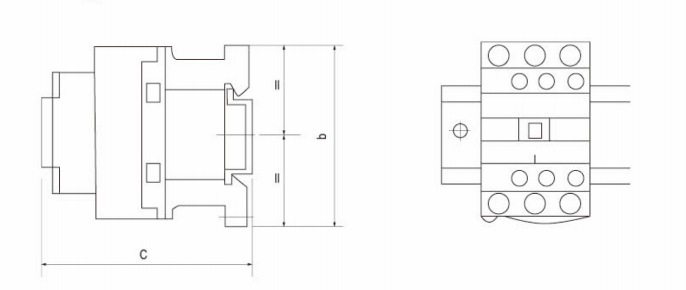

Appearance and Installation Dimension:

Installation dimension:

Type	A max	B max	C max	a	b	∅
SC1-09～18	45	77	86	35	50/60	4.5
SC1-25～32	45	85	92	35	60/70	4.5
SC1-40～65	75	127	119	40	100/110	6.5
SC1-80～95	85	127	130	40	100/110	6.5

FAQ:

1. How long does it take to get a reply after sending an inquiry?

We will reply within 24 hours, even at the weekend or holidays.

2. Is OEM/ODM pack available?

Yes, OEM/ODM packs are welcome. We are professional on OEM/ODM work.

3.Do you offer samples if we want to test?

Yes, we can offer free sample, but you should afford the shipping cost.

4.Do you have inspection procedures for products?

Our products100% self-inspection and testing before packing.

5.How about delivery time of the order?

15-20 days after getting deposit.
