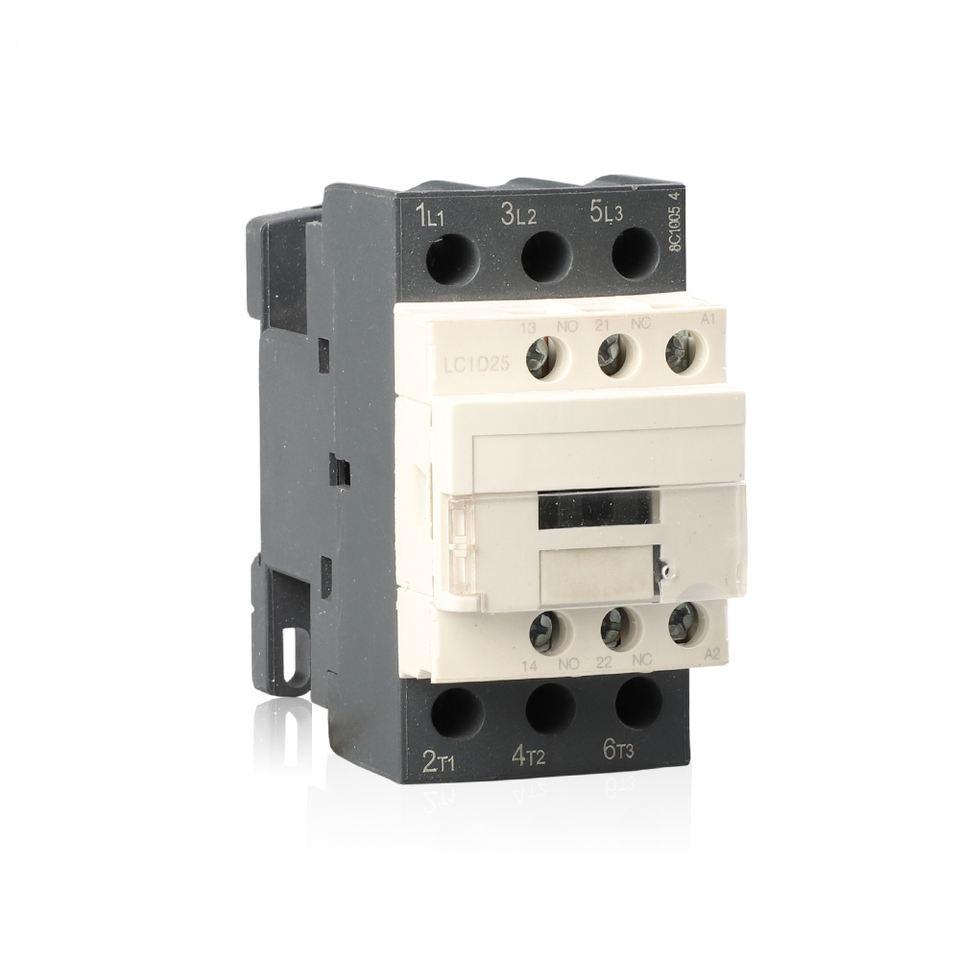

20A Coil Voltage Motor Starter Contactor AC220V/380V 3P+NO+NC Ac Magnetic

Ask Lasest Price
Brand Name :	YOKG
Model Number :	SC1-09,SC1-12, SC1-18,SC1-25, SC1-32
Certification :	CE,TUV,CB
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T
Supply Ability :	100000pcs per Month
Delivery Time :	15days or Depends on ordering QTYS

Add to Cart

Product Details
Company Profile

20A Coil Voltage Motor Starter Contactor AC220V/380V 3P+NO+NC Ac Magnetic

20A Coil Voltage AC220V/380V Motor Starter Contactor 3P+NO+NC Ac Magnetic Contactor

Features:
DIN rail Mounting.
AC Contactor is suitable for long-distance making and breaking circuit.
Frequently starting and controlling the AC motors.

Model and Implication:

Main parameters and Technical Performance:

Type			SC1-09	SC1-12	SC1-18	SC1-25	SC1-32
Rated heating current (A)			20	20	25	32	40
Rated insulation voltage (V)			690
Rated impact withstand voltage (KV)			6
Rated making capacity			10le
Rated breaking capacity			8le
Poles			3
Auxiliary contact			1NO + 1NC
Short-time withstand current(A)	10S		72	96	144	200	256
AC-3 Rated working current(A)	220V/230V		9	12	18	25	32
	380V/400V		9	12	18	25	32
	660V/690V		6.5	8.9	12	18	22
AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW	220V/230V		2.2	3	4	5.5	7.5
	380V/400V		4	5.5	7.5	11	15
	660V/690V		5.5	7.5	10	15	18.5
Operation frequency (times/h)	Electrical life		1200				600
	Mechanical life		3600
AC-3 Electrical life (10000/times)			100	100	100	100	80
Mechanical life (10000/times)			1000	1000	1000	1000	800
Equipped fuse type			RT16-20	RT16-20	RT16-32	RT16-40	RT16-50
Rated control supply voltage Us(V)	50/60Hz		12～480
Operation range	Pull-in		(85%～110%)Us +40℃
	Releasing		(20%～75%)Us -5℃
Ac coil average power(VA)	Start		70			110
	Keeping		8			11
Power efficiency class			class 3
Thermal loss(W)			2～3			3～4
Actuation time(ms)	Close		12～35
	Break		5～20
Main circuit wiring	flexible wire without cold pressing terminal (㎟)	1 stick	1～4	1～4	1.5～6	1.5～10	2.5～10
		2 sticks	1～4	1～4	1.5～6	1.5～6	2.5～10
	flexible wire with cold pressing terminal (㎟)	1 stick	1～4	1～4	1～6	1～6	1～10
		2 sticks	1～2.5	1～2.5	1～4	1～4	1.5～6
	Hard wire (㎟)	1 stick	1～4	1～4	1.5～6	1.5～6	1.5～10
		2 sticks	1～4	1～4	1.5～6	1.5～6	2.5～10
	Fastening screw size		M3.5			M4
	Tightening fastening torque (N.m)		0.8			1.2
Control loop wiring	flexible wire without cold pressing terminal (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～4	1～4	1～4	1～4	1～4
	flexible wire with cold pressing terminal (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～2.5	1～2.5	1～2.5	1～2.5	1～2.5
	Hard wire (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～4	1～4	1～4	1～4	1～4
	Fastening screw size		M3.5
	Tightening fastening torque (N.m)		0.8

Appearance and Installation Dimension:

Installation dimension:

Type	A max	B max	C max	a	b	∅
SC1-09～18	45	77	86	35	50/60	4.5
SC1-25～32	45	85	92	35	60/70	4.5
SC1-40～65	75	127	119	40	100/110	6.5
SC1-80～95	85	127	130	40	100/110	6.5

FAQ:

1. How long does it take to get a reply after sending an inquiry?

We will reply within 24 hours, even at the weekend or holidays.

2. Is OEM/ODM pack available?

Yes, OEM/ODM packs are welcome. We are professional on OEM/ODM work.

3.Do you offer samples if we want to test?

Yes. We think that samples are very important for bulk orders. We can send samples.

4.Can I have a visit to your factory before the order?
A: Well Welcome! Our factory address: Yueqing City, Wenzhou, Zhejiang, China

5.If i want to release order, what's the payment method you accept ?
A: We accept T/T, Western union, L/C,etc.
