Electrical Insulated Male Wire Disconnect And Female Cable Lug Tinned Copper

Ask Lasest Price
Brand Name :	YOKG
Model Number :	MDD series
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T
Supply Ability :	100000pcs per Month
Delivery Time :	15days or Depends on ordering QTYS

Add to Cart

Product Details
Company Profile

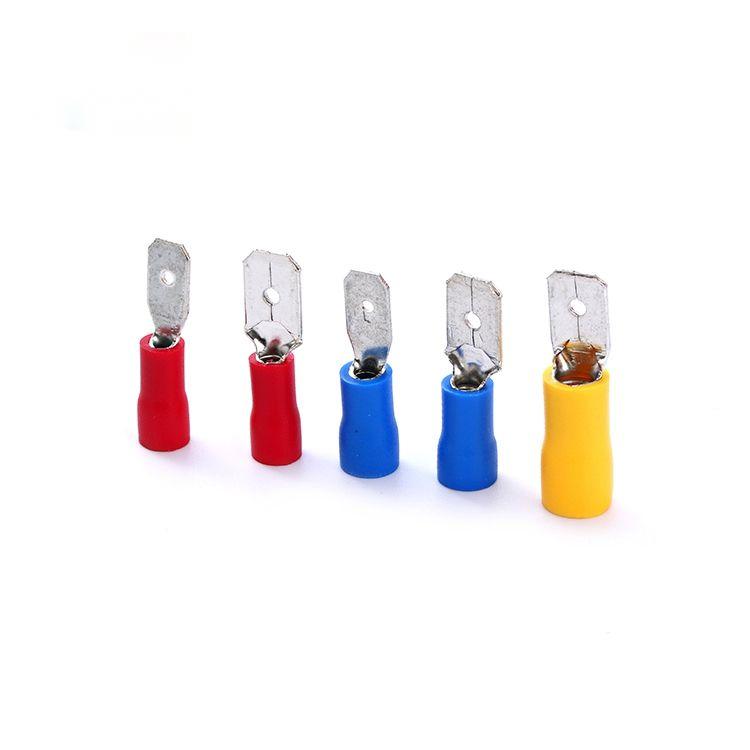

Electrical Insulated Male Wire Disconnect And Female Cable Lug Tinned Copper

Tinned Copper Electrical Insulated Male Wire Disconnect And Female Cable Lug

Wire range: 0.5-1.5 ㎟, AWG:22-16, Imax=10A

Item No.	Nema Tab(mm)	Dimension (mm)					Color
Item No.	Nema Tab(mm)	B	d∅	D∅	L	H	Color
MDD1.25-110(5)	0.5 x 2.8	2.8	1.7	4.3	17.7	10.0	Red
MDD1.25-110(8)	0.8 x 2.8	2.8	1.7	4.3	17.7
MDD1.25-187(5)	0.5 x 4.75	4.75	1.7	4.3	20.0
MDD1.25-187(8)	0.8 x 4.75	4.75	1.7	4.3	20.0
MDD1.25-250	0.8 x 6.35	6.35	1.7	4.3	21.0

Wire range: 1.5-2.5 ㎟, AWG:16-14, Imax=15A

Item No.	Nema Tab(mm)	Dimension (mm)					Color
Item No.	Nema Tab(mm)	B	d∅	D∅	L	H	Color
MDD2-110(5)	0.5 x 2.8	2.8	2.3	4.3	17.7	10.0	Blue
MDD2-110(8)	0.8 x 2.8	2.8	2.3	4.3	17.7
MDD2-187(5)	0.5 x 4.75	4.75	2.3	4.3	20.0
MDD2-187(8)	0.8 x 4.75	4.75	2.3	4.3	20.0
MDD2-250	0.8 x 6.35	6.35	2.3	4.3	21.0

Wire range: 4-6 ㎟, AWG:12-10, Imax=24A

Item No.	Nema Tab(mm)	Dimension (mm)					Color
Item No.	Nema Tab(mm)	B	d∅	D∅	L	H	Color
MDD5.5-250	0.8 x 6.35	6.35	3.4	5.7	25.0	13.0	Yellow

FAQ:
1. Are you factory or trading company?

Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
Yes,your logo can be printed as your demand. we can offer OEM service.
3. What's the lead time for regular order?
7-15 days as order quantity

4. Can you provide samples? Are the samples free?
We provide free samples by express, but you need pay the express charge or make samples collection at your side.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact us freely.
6. How about the after-sale service?

Any comments are welcomed,we will solve your application problems.
