LC1D Series 40A 220v 1NO+1NC Telemecanique Contactor With Wiring Diagram Function

Ask Lasest Price
Brand Name :	YOKG
Model Number :	LC1D
Certification :	CE,TUV,CB
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T
Supply Ability :	100000pcs per Month
Delivery Time :	15days or Depends on ordering QTYS

Add to Cart

Product Details
Company Profile

LC1D Series 40A 220v 1NO+1NC Telemecanique Contactor With Wiring Diagram Function

LC1D Series 40A 220v 1NO+1NC Telemecanique Contactor With Wiring Diagram Function

General:

Installation: Din rail / screw installation

Certification: CE,CB,TUV

Standard: IEC 60947-1, IEC 60947-4-1

Ambient temperature: -5℃~+40℃

Wiring capacity(mm): 1.5-35

Frequency: 50/60Hz

Altitude: ≤ 2000m

Pollution degree: Class 3

Installation category: III

Protection degree: IP20

Features:

1.This SC1 AC contactor with a dust cover for protection and more pretty.
2.With the thermal relay,it combined into the electromagnetic starter.
3.Full set accessories
4.Auxiliary contact group Top hung/side hung
5.Time-delay auxiliary contact

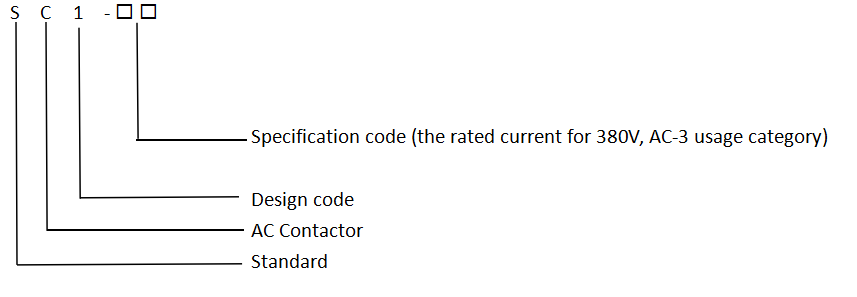

Model and Implication:

Main parameters and Technical Performance:

Type			SC1-40	SC1-50	SC1-65	SC1-80	SC1-95
Rated heating current (A)			50	60	80	110	110
Rated insulation voltage (V)			690
Rated impact withstand voltage (KV)			6
Rated making capacity			10le
Rated breaking capacity			8le
Poles			3
Auxiliary contact			1NO + 1NC
Short-time withstand current(A)	10S		320	400	520	640	760
AC-3 Rated working current(A)	220V/230V		40	50	65	80	95
	380V/400V		40	50	65	80	95
	660V/690V		34	39	42	49	49
AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW	220V/230V		11	15	18.5	22	25
	380V/400V		18.5	22	30	37	45
	660V/690V		30	33	37	45	45
Operation frequency (times/h)	Electrical life		600
	Mechanical life		3600
AC-3 Electrical life (10000/times)			80	60	60	60	60
Mechanical life (10000/times)			800	800	800	600	600
Equipped fuse type			RT16-63	RT16-80	RT16-80	RT16-100	RT16-125
Rated control supply voltage Us(V)	50/60Hz		12～480
Operation range	Pull-in		(85%～110%)Us +40℃
	Releasing		(20%～75%)Us -5℃
Ac coil average power(VA)	Start		200
	Keeping		20
Power efficiency class			class 3
Thermal loss(W)			6 ～10
Actuation time(ms)	Close		20 ～ 25			20 ～ 35
	Break		8 ～ 15			8 ～ 20
Main circuit wiring	flexible wire without cold pressing terminal (㎟)	1 stick	2.5～25	2.5～25	2.5～25	4～50	4～50
		2 sticks	2.5～16	2.5～16	2.5～16	4～25	4～25
	flexible wire with cold pressing terminal (㎟)	1 stick	2.5～25	2.5～25	2.5～25	4～50	4～50
		2 sticks	2.5～10	2.5～10	2.5～10	4～16	4～16
	Hard wire (㎟)	1 stick	2.5～25	2.5～25	2.5～25	4～50	4～50
		2 sticks	2.5～16	2.5～16	2.5～16	4～25	4～25
	Fastening screw size		M8			M10
	Tightening fastening torque (N.m)		3.5			4
Control loop wiring	flexible wire without cold pressing terminal (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～4	1～4	1～4	1～4	1～4
	flexible wire with cold pressing terminal (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～2.5	1～2.5	1～2.5	1～2.5	1～2.5
	Hard wire (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～4	1～4	1～4	1～4	1～4
	Fastening screw size		M3.5
	Tightening fastening torque (N.m)		0.8

Appearance and Installation Dimension:

Installation dimension:

Type	A max	B max	C max	a	b	∅
SC1-40～65	75	127	119	40	100/110	6.5
SC1-80～95	85	127	130	40	100/110	6.5

FAQ:

Q: Are you the MANUFACTURER or Trader?

A: we are the factory for switching power supply, as well as other products, the products are of high quality with most reasonable price.

Q: What is the LEAD TIME?

A: the lead time is usually 5-20 days, it depends on your exact product and quantity.

Q: Do you accept OEM?

A: Yes, it is highly welcome.

Product Tags:

3P AC Contactor With Wiring Diagram

1NO+1NC Telemecanique Contactor

LC1D Series 3 Pole AC Contactor

LC1D Series 40A 220v 1NO+1NC Telemecanique Contactor With Wiring Diagram Function
