RNB 14 - 4 Tin Non Insulated Ring Terminals 88A For Quick Crimp Connectors

Ask Lasest Price
Brand Name :	YOKG
Model Number :	RNB 14-12
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T
Supply Ability :	100000pcs per Month
Delivery Time :	15days or Depends on ordering QTYS

Add to Cart

Product Details
Company Profile

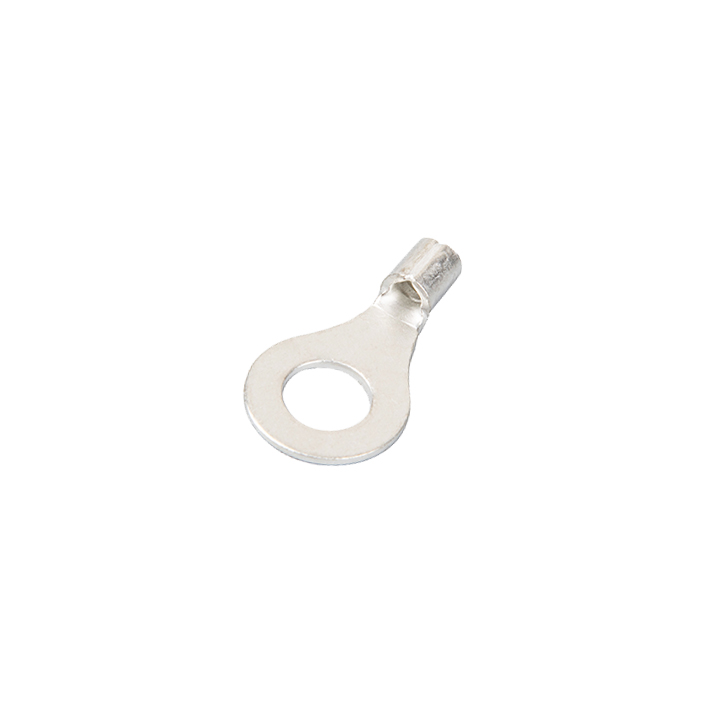

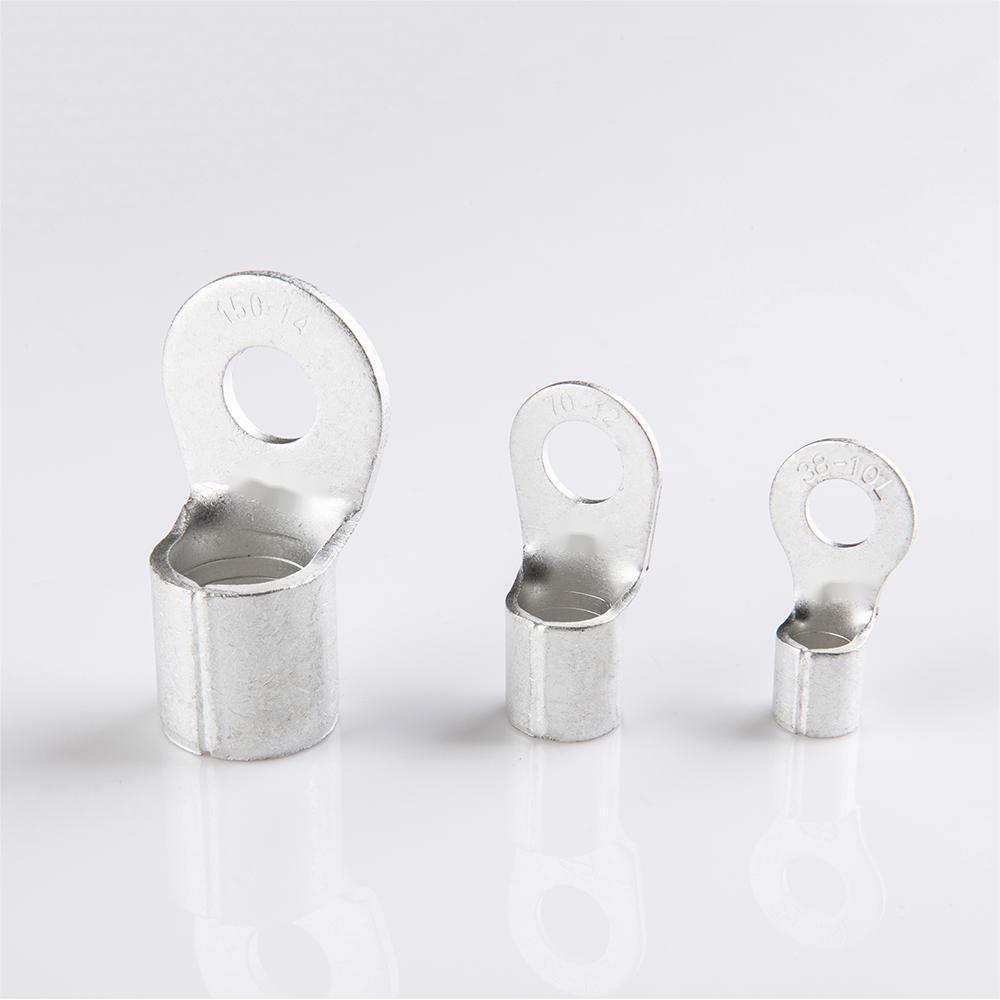

RNB 14 - 4 Tin Non Insulated Ring Terminals 88A For Quick Crimp Connectors

RNB 14-4 Non Insulated Ring Terminals For Quick Crimp Electrical Terminal Connectors

Application:

Size: RNB1.25 ~ RNB325-27
Material: RoHS approved copper, PVC Insulation.
Finish: Tin plated
Standard: CE, RoHS
FOB Port SHANGHAI / NINGBO

Item No.	Stud size	Dimension (mm)
Item No.	Stud size	d2	B	L	F	E	D∅	d∅
RNB8-4	#8	4.3	8.8	23.8	9.3	8.5	7.2	4.5
RNBS8-5	#10	5.3	8.8	23.8	11.1
RNBM8-5	#10	5.3	12.0	23.8	9.3
RNBL8-5	#10	5.3	15.0	29.8	13.8
RNBS8-6	1/4	6.4	12.0	23.8	9.3
RNBL8-6	1/4	6.4	15.0	29.8	13.8
RNB8-8	5/16	8.4	15.0	29.8	13.8
RNB8-10	3/8	10.5	15.0	29.8	13.8
RNB8-12	1/2	13.0	20.0	33.5	15.0

Wire range: 6-10㎜², A.W.G:8, Imax=62A

Wire range: 10-16㎜², A.W.G:6, Imax=88A

Item No.	Stud size	Dimension (mm)
Item No.	Stud size	d2	B	L	F	E	D∅	d∅
RNB14-4	#8	4.3	12.0	29.8	13.3	10.5	9.0	5.8
RNB14-5	#10	5.3	12.0	29.8	13.3
RNBS14-6	1/4	6.4	12.0	29.8	13.3
RNBL14-6	1/4	6.4	16.0	32.8	13.3
RNB14-8	5/16	8.4	16.0	32.8	14.5
RNB14-10	3/8	10.5	16.0	32.8	14.5
RNB14-12	1/2	13.0	22.0	41.0	19.5

Wire range: 16-25㎜², A.W.G:4, Imax=115A

Item No.	Stud size	Dimension (mm)
Item No.	Stud size	d2	B	L	F	E	D∅	d∅
RNBS22-5	#10	5.3	12.2	33.2	14.5	12.0	11.5	7.7
RNBL22-5	#10	5.3	16.5	33.7	13.5
RNBS22-6	1/4	6.4	12.2	33.2	14.5
RNBL22-6	1/4	6.4	16.5	33.7	13.5
RNB22-8	5/16	8.4	16.5	33.7	13.5
RNB22-10	3/8	10.5	16.5	33.7	13.5
RNB22-11	7/16	11.5	22.0	42.5	19.5
RNB22-12	1/2	13.0	22.0	42.5	19.5

Wire range: 25-35㎜², A.W.G:2, Imax=160A

Item No.	Stud size	Dimension (mm)
Item No.	Stud size	d2	B	L	F	E	D∅	d∅
RNB38-5	#10	5.3	15.3	39.0	18.3	14.0	13.3	9.4
RNB38-6	1/4	6.4	15.3	39.0	18.3
RNBS38-8	5/16	8.4	15.3	39.0	18.3
RNBL38-8	5/16	8.4	22.0	42.7	17.7
RNBS38-10	3/8	10.5	15.3	39.0	18.3
RNBL38-10	3/8	10.5	22.0	42.7	17.7
RNB38-11	7/16	11.5	22.0	42.7	17.7
RNB38-12	1/2	13.0	22.0	42.7	17.7

FAQ:

1. Are you factory or trading company?

Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
Yes,your logo can be printed as your demand. we can offer OEM service.
3. What's the lead time for regular order?
7-15 days as order quantity

4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. How does your factory do regarding quality control?
All the products will be 100% checked before the shipment.
6. When can I get the price?

Usually we quote within 24 hours after we get your inquiry.
