Brand Name : | YOKG |
Model Number : | YG0132-4/YG0232-4, YG-0132/YG0232, YG0142/YG0242, YG0152/YG0252 |
Certification : | CE, ROHS |
Price : | Negotiable |
Payment Terms : | L/C, D/P, T/T |
Supply Ability : | 100000pcs per Month |
Delivery Time : | 15days or Depends on ordering QTYS |

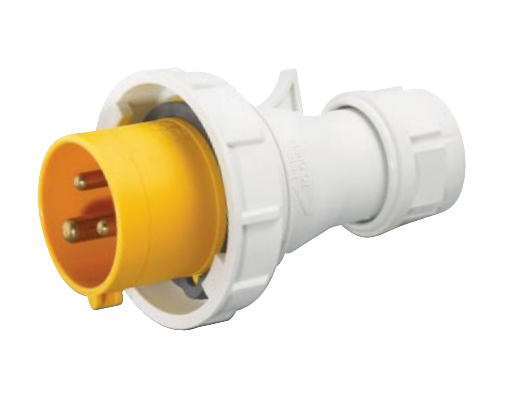

IP67 230V 32A 3 Pin Industrial Electrical Plugs Sockets IEC Standard Grounding
Current(A): 16A/32A
Voltage(V):110-130V ~
Poles: 2P+E
Code: YG0132-4, YG0232-4
Protection degree:IP67
Earth contact position | 4h | ||
Rated current (A) | 16 | 32 | |
Pole | 3 | ||
Dimension(mm) | a | 118 | 146 |
b | 82 | 100 | |
c | 47 | 63 | |
d | 6-15 | 10-20 | |
sw | 38 | 50 | |
Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 |
------------------------------------------------------------------------------
Current(A): 16A/32A
Voltage(V):220-240V ~
Poles: 3P+E
Code: YG0132, YG0232
Protection degree:IP67
Earth contact position | 6h | ||
Rated current (A) | 16 | 32 | |
Pole | 3 | ||
Dimension(mm) | a | 118 | 146 |
b | 82 | 100 | |
d | 6-15 | 10-20 | |
sw | 38 | 50 | |
Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 |
---------------------------------------------------------------------------------------------------
Current(A): 16A/32A
Voltage(V):380-415V~
Poles: 3P+E
Code: YG0142, YG0242
Protection degree:IP67
Earth contact position | 6h | ||
Rated current (A) | 16 | 32 | |
Pole | 4 | ||
Dimension(mm) | a | 124 | 146 |
b | 79 | 93 | |
d | 6-15 | 10-20 | |
sw | 38 | 50 | |
Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 |
--------------------------------------------------------------------
Current(A): 16A/32A
Voltage(V):220-38V~ / 240-415V~
Poles: 3P+N+E
Code: YG0152, YG0252
Protection degree:IP67
Earth contact position | 6h | ||
Rated current (A) | 16 | 32 | |
Pole | 5 | ||
Dimension(mm) | a | 131 | 152 |
b | 87 | 100 | |
d | 8-16 | 10-20 | |
sw | 42 | 50 | |
Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 |
