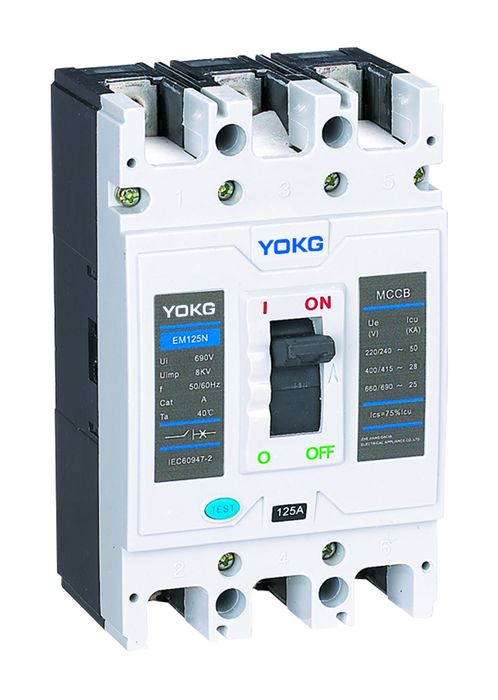

Single Pole Moulded Case Circuit Breaker 3 Poles MCCB 125A 2P 4P

Application:
♦ EM series moulded case circuit breaker is applied with with rated insulating voltage 500V, rated working voltage 690V in AC (50/60) Hz condition and used for infrequent exchange. The MCCB is protecting in overload, short-circuit, and under voltage situation to protect circuit system and power device from damage.
♦ The MCCB can be devided into B,N,S,H types according to their rated limited short-circuit breaking capacity.
♦ The MCCB is advantageous for its compact body, high breaking capacity, short arccasting and superior aseismatic function.

♦ The MCCB has function of insulation with its mark""
♦ The product complies with IEC 60947-2, GB14048.2


Normal installtion conditions:
♦ Height above sea level: ≤2000m
♦ Ambient medium temperature: ≤+40℃, ≥5℃
♦ It can endure the effect of humid air and the effect of salt mist, oil mist and fog bacteria.
♦ In the place within the midium without danger of explosion and without corrosion of metal box, damage of insulation gases
and conductive dust
♦ No damage of rain and snow
♦ Pollution degree: 3

Tripping characteristic:

Specifications:

Poles	1P,2P,3P,4P
Electrical Specification
Rated frame level current Inm(A)	125
Rated current (A) In	16,20,25,32,40,50,63,80,100,125
Rated insulated voltage Ui (AC V) Ui	690
Rated impulse withstand voltage (V) Uimp	6000
Rated working voltage Ue (AC V)	400/415
Type of breaking	B	N
Rated limited short-circuit breaking capacity Icu (kA)	20	25
Rated working short-circuit breaking capacity Icu (kA)	15	19
Isolation function
Service life Mechanical Standard value	10000
(O-C) Electrical Standard value	2000
Connection And Installation
Protection degree All sides	IP40
Wiring terminal	IP20
Wiring assembly	Front/Rear
Plug-in assembly	□
Wiring Draw-out assembly	-
Arcing distance(mm)	0,≤50
Dimensions(mm) L	150
W	62/92	122
(W x H x L) H	72
