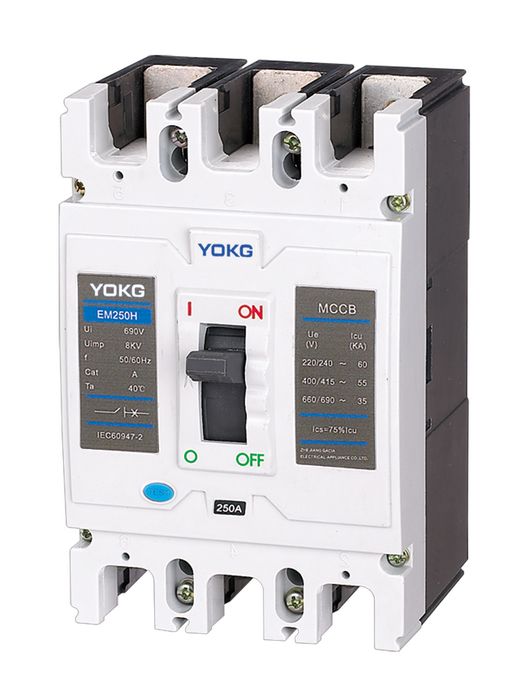

YOKG Moulded Case Circuit Breaker MCCB EM250N 1P, 2P, 3P, 4P Ecomonic

Application:
♦ EM series moulded case circuit breaker is applied with with rated insulating voltage 500V, rated working voltage 690V in AC (50/60) Hz condition and used for infrequent exchange. The MCCB is protecting in overload, short-circuit, and under voltage situation to protect circuit system and power device from damage.
♦ The MCCB can be devided into B,N,S,H types according to their rated limited short-circuit breaking capacity.
♦ The MCCB is advantageous for its compact body, high breaking capacity, short arccasting and superior aseismatic function.
♦ The MCCB has function of insulation with its mark""
♦ The product complies with IEC 60947-2, GB14048.2


Normal installtion conditions:
♦ Height above sea level: ≤2000m
♦ Ambient medium temperature: ≤+40℃, ≥5℃
♦ It can endure the effect of humid air and the effect of salt mist, oil mist and fog bacteria.
♦ In the place within the midium without danger of explosion and without corrosion of metal box, damage of insulation gases
and conductive dust
♦ No damage of rain and snow
♦ Pollution degree: 3

Tripping characteristic:

Specifications:

Poles	1P,2P,3P,4P
Electrical Specification
Rated frame level current Inm(A)	250
Rated current (A) In	125,160,180,200,225(250)
Rated insulated voltage Ui (AC V) Ui	690
Rated impulse withstand voltage (V) Uimp	8000
Rated working voltage Ue (AC V)	400/415
Type of breaking	N	S	H
Rated limited short-circuit breaking capacity Icu (kA)	35	50	65
Rated working short-circuit breaking capacity Icu (kA)	35	38	42.75
Isolation function
Service life Mechanical Standard value	8500
(O-C) Electrical Standard value	1500
Connection And Installation
Protection degree All sides	IP40
Wiring terminal	IP20
Wiring assembly	Front/Rear
Plug-in assembly	□
Wiring Draw-out assembly	-
Arcing distance(mm)	0,≤50
Dimensions(mm) L	165
W	72/107	142
(W x H x L) H	72
