YOKG 2NO 2NC Contactor 20A 30amp 45A Magnetic 3 Pole 30 Amp Contactor

Ask Lasest Price
Brand Name :	YOKG
Model Number :	SBC40~41, SBC42~43, SBC44
Certification :	CE,TUV,CB
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T
Supply Ability :	100000pcs per Month
Delivery Time :	15days or Depends on ordering QTYS

Add to Cart

Product Details
Company Profile

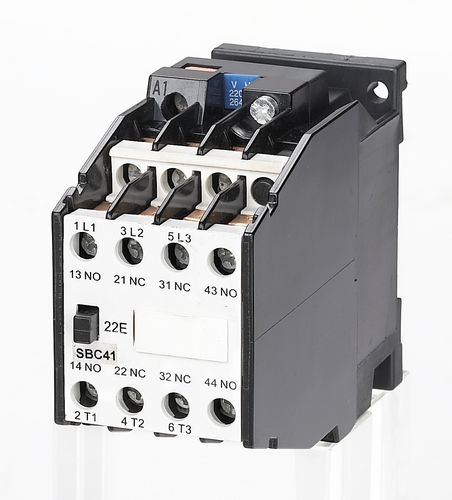

YOKG 2NO 2NC Contactor 20A 30amp 45A Magnetic 3 Pole 30 Amp Contactor

YOKG 2NO+2NC 20A 30amp 45A Magnetic AC Electric Contactor In 3 Poles

Products description:

SFC series AC contactor are suitable in electrical system with AC 50/60Hz, rated operational voltage up to 660V. In AC-3 usage, rated operational voltage up to 380V, rated operational current up to 630A to make or break remote motors or system. They form electromagnetic starters with suitable thermal overload or phase-failure.

Main parameters and Technical Performance:

Type			SBC40	SBC41	SBC42	SBC43	SBC44
Rated heating current (A)			20	20	30	30	45
Rated insulation voltage (V)			690
Rated impact withstand voltage (KV)			6
Rated making capacity			10le
Rated breaking capacity			8le
Poles			3
Auxiliary contact			2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC
Short-time withstand current(A)	10S		72	96	128	176	256
Rated working current(A)	380V	AC-3	9	12	16	22	32
Rated working current(A)	380V	AC-4	3.3	4.3	7.7	8.5	15.6
Controllable motor power (KW) 50Hz	AC-3	220V	2.4	3.3	4	6.1	8.5
		380V	4	5.5	7.5	11	15
		500V	5.5	7.5	10	11	21
		660V	5.5	7.5	11	11	23
	AC-4	380V	1.4	1.9	3.5	4	7.5
	AC-4	660V	2.4	3.3	6	6.6	13
Operation frequency (times/h)	AC-3		1200	1200	1200	1200	600
Operation frequency (times/h)	AC-4		300	300	300	300	300
Electrical life (10000/times)	AC-3		100	100	100	100	80
Electrical life (10000/times)	AC-4		20	20	20	20	20
Mechanical life (10000/times)			1000	1000	1000	1000	800
Attracting Coil working voltage tolerance (AC)			(85%～110%)Us +40℃
Attracting Coil power consumption	Keeping (VA)		10	10	10	10	10
Attracting Coil power consumption	Pick-up(VA)		68	68	68	68	69
Auxiliary contact conventional thermal current(A)			10	10	10	10	10
Auxiliary contact rated insulation voltage (V)			660	660	660	660	660
Auxiliary contact rated working current (A)	AC-15	380V	6	6	6	6	4
	AC-15	220V	10	10	10	10	6
	DC-13	110V	0.9	0.9	0.9	0.9	1.8
	DC-13	220V	0.45	0.45	0.45	0.45	0.9

Installation dimension:

Type	A max	B max	C max	a	b	∅
SBC40	46	79	106	35	60	4.8
SBC41
SBC42	46	89	116	35	75	4.8
SBC43
SBC44	74	90	109	50	75	5

FAQ:

1. Could I have prices of your products?

Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.

2. Can we print our logo/website/company name on products?

Yes, OEM and ODM are available.

3. What's the lead time for regular order?

7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.

4. Do you inspect the finished products?

Our products 100% self-inspection and testing before packing.

5. How about payment terms?

30% deposit, the rest payment balance against B/L copy.
