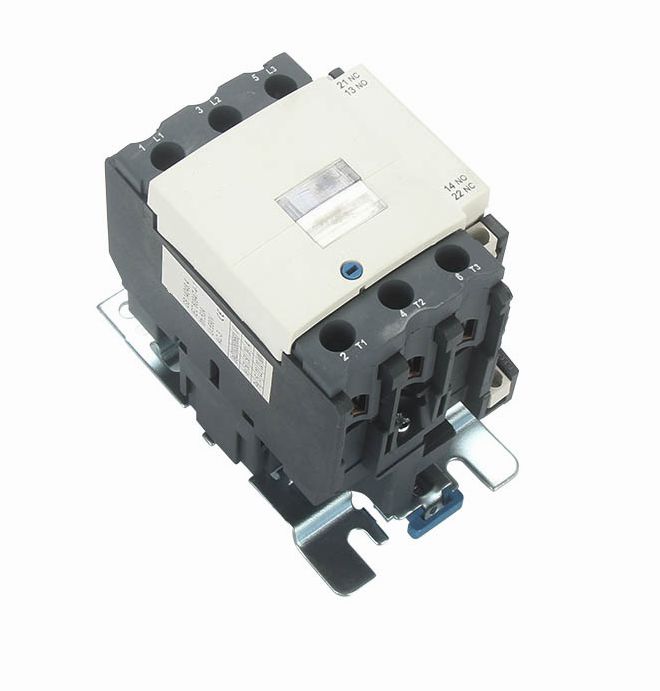

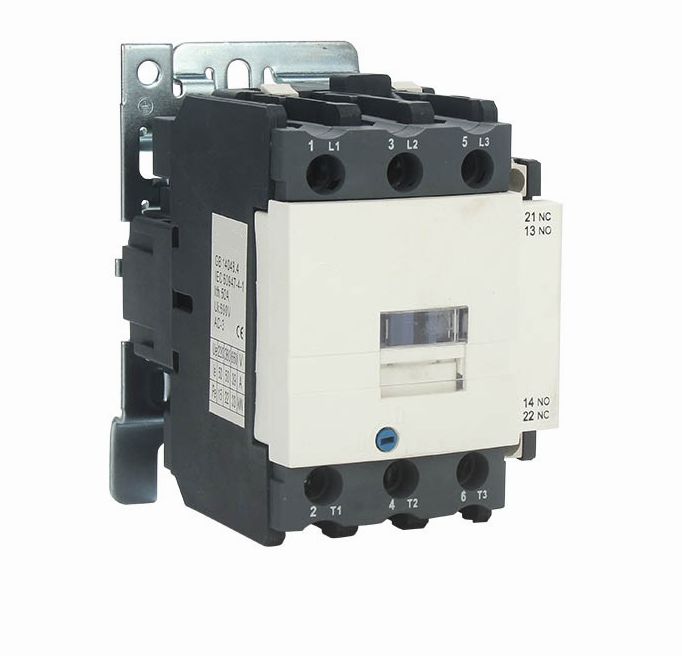

IEC60947 Telemecanique Magnetic Contactor SC1-40 - 65 SC180 - 95 AC Magnetic Contactor

Ask Lasest Price
Brand Name :	YOKG
Model Number :	SC1-40～65， SC1-80～95
Certification :	CE,TUV,CB
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T
Supply Ability :	100000pcs per Month
Delivery Time :	15days or Depends on ordering QTYS

Add to Cart

Product Details
Company Profile

IEC60947 Telemecanique Magnetic Contactor SC1-40 - 65 SC180 - 95 AC Magnetic Contactor

IEC60947 Telemecanique Contactor SC1-40~65 SC180~95 AC Magnetic Contactor

General:

Installation: Din rail / screw installation

Certification: CE,CB,TUV

Standard: IEC 60947-1, IEC 60947-4-1

Ambient temperature: -5℃~+40℃

Wiring capacity(mm): 1.5-35

Frequency: 50/60Hz

Altitude: ≤ 2000m

Pollution degree: Class 3

Installation category: III

Protection degree: IP20

Features: With dust cover design, contactor have characteristic of better safety, reliability and it also can extended service life.

They are in small volume, light weight, less power loss, long life and safe and reliability. Can be installed with auxiliary contacts block, time relay and current-limited contacts block, and thermal relay.

Model and Implication:

Main parameters and Technical Performance:

Type			SC1-40	SC1-50	SC1-65	SC1-80	SC1-95
Rated heating current (A)			50	60	80	110	110
Rated insulation voltage (V)			690
Rated impact withstand voltage (KV)			6
Rated making capacity			10le
Rated breaking capacity			8le
Poles			3
Auxiliary contact			1NO + 1NC
Short-time withstand current(A)	10S		320	400	520	640	760
AC-3 Rated working current(A)	220V/230V		40	50	65	80	95
	380V/400V		40	50	65	80	95
	660V/690V		34	39	42	49	49
AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW	220V/230V		11	15	18.5	22	25
	380V/400V		18.5	22	30	37	45
	660V/690V		30	33	37	45	45
Operation frequency (times/h)	Electrical life		600
	Mechanical life		3600
AC-3 Electrical life (10000/times)			80	60	60	60	60
Mechanical life (10000/times)			800	800	800	600	600
Equipped fuse type			RT16-63	RT16-80	RT16-80	RT16-100	RT16-125
Rated control supply voltage Us(V)	50/60Hz		12～480
Operation range	Pull-in		(85%～110%)Us +40℃
	Releasing		(20%～75%)Us -5℃
Ac coil average power(VA)	Start		200
	Keeping		20
Power efficiency class			class 3
Thermal loss(W)			6 ～10
Actuation time(ms)	Close		20 ～ 25			20 ～ 35
	Break		8 ～ 15			8 ～ 20
Main circuit wiring	flexible wire without cold pressing terminal (㎟)	1 stick	2.5～25	2.5～25	2.5～25	4～50	4～50
		2 sticks	2.5～16	2.5～16	2.5～16	4～25	4～25
	flexible wire with cold pressing terminal (㎟)	1 stick	2.5～25	2.5～25	2.5～25	4～50	4～50
		2 sticks	2.5～10	2.5～10	2.5～10	4～16	4～16
	Hard wire (㎟)	1 stick	2.5～25	2.5～25	2.5～25	4～50	4～50
		2 sticks	2.5～16	2.5～16	2.5～16	4～25	4～25
	Fastening screw size		M8			M10
	Tightening fastening torque (N.m)		3.5			4
Control loop wiring	flexible wire without cold pressing terminal (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～4	1～4	1～4	1～4	1～4
	flexible wire with cold pressing terminal (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～2.5	1～2.5	1～2.5	1～2.5	1～2.5
	Hard wire (㎟)	1 stick	1～4	1～4	1～4	1～4	1～4
		2 sticks	1～4	1～4	1～4	1～4	1～4
	Fastening screw size		M3.5
	Tightening fastening torque (N.m)		0.8

Appearance and Installation Dimension:

Installation dimension:

Type	A max	B max	C max	a	b	∅
SC1-40～65	75	127	119	40	100/110	6.5
SC1-80～95	85	127	130	40	100/110	6.5
