Brand Name :	YOKG
Model Number :	SC25
Certification :	CE,TUV,CB
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T
Supply Ability :	100000pcs per Month
Delivery Time :	15days or Depends on ordering QTYS

Add to Cart

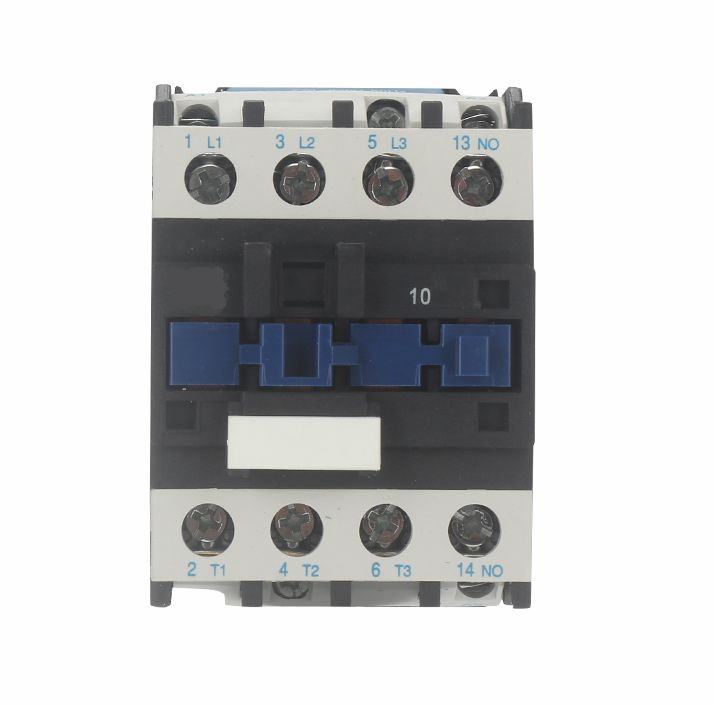

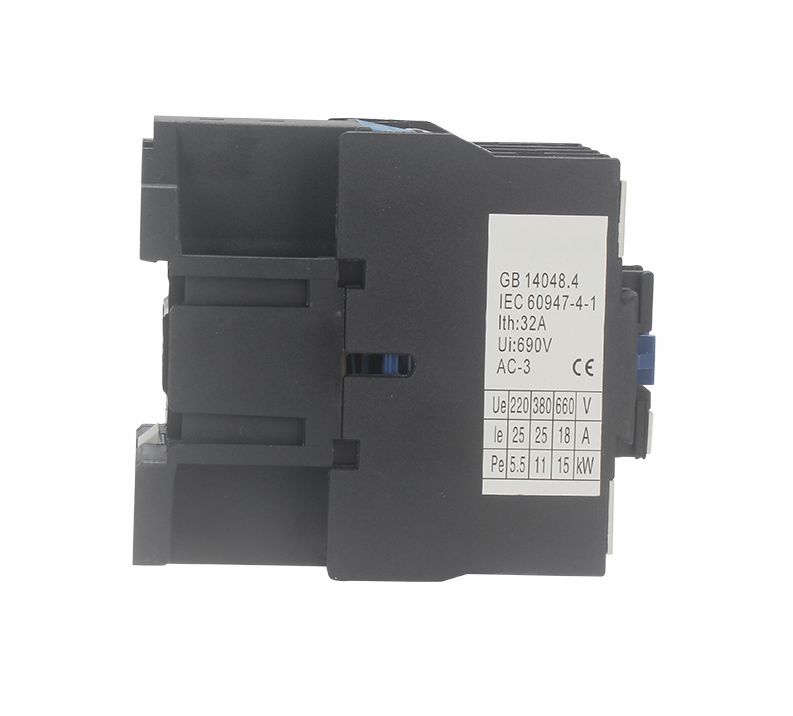

NO Or NC 690 Vac AC Electrical Contactor 50 60HZ Magnetic Ac Contactor

Characteristics:

Installation: Din rail / screw installation

Certification: CE,CB,TUV

Standard: IEC 60947-1, IEC 60947-4-1

Frequency of operation: 300-1200 times/hour

Ambient temperature: -5℃~+40℃

Protection degree: IP20

Installation category: III

Pollution degree: Class 3

Altitude: ≤ 2000m

Main parameters and Technical Performance:

Type			SC25
Rated heating current (A)			40
Rated insulation voltage (V)			690
Rated impact withstand voltage (KV)			6
Rated making capacity			10le
Rated breaking capacity			8le
Poles			3
Auxiliary contact			NO/NC
Short-time withstand current(A)	10S		200
Rated working current(A)	380V	AC-3	25
		AC-4	8.5
	660V	AC-3	18
		AC-4	4.4
AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW	220V		5.5
	380V		11
	660V		15
Operation frequency (times/h)	Electrical life	AC-3	600
		AC-4	300
	Mechanical life		3600
Electrical life (10000/times)	AC-3		100
	AC-4		20
Mechanical life (10000/times)			1000
Equipped fuse type			RT16-40
Rated control supply voltage Us(V)	50/60Hz		12~480
Operation range	Pull-in		(85%~110%)Us +40℃
	Releasing		(20%~75%)Us -5℃
Ac coil average power(VA)	Start		110
	Keeping		11
Power efficiency class			class 3
Thermal loss(W)			3~4
Actuation time(ms)	Close		12~25
	Break		5~20
Main circuit wiring	flexible wire without cold pressing terminal (㎟)	1 stick	1.5～10
		2 sticks	1.5～6
	flexible wire with cold pressing terminal (㎟)	1 stick	1～6
		2 sticks	1～4
	Hard wire (㎟)	1 stick	1.5～6
		2 sticks	1.5～6
	Fastening screw size		M4
	Tightening fastening torque (N.m)		1.2
Control loop wiring	flexible wire without cold pressing terminal (㎟)	1 stick	1～4
		2 sticks	1～4
	flexible wire with cold pressing terminal (㎟)	1 stick	1～4
		2 sticks	1～2.5
	Hard wire (㎟)	1 stick	1～4
		2 sticks	1～4
	Fastening screw size		M3.5
	Tightening fastening torque (N.m)		0.8

Installation dimension:

A max	B max	C max	a	b	∅
57	86	95	40	48	4.5
