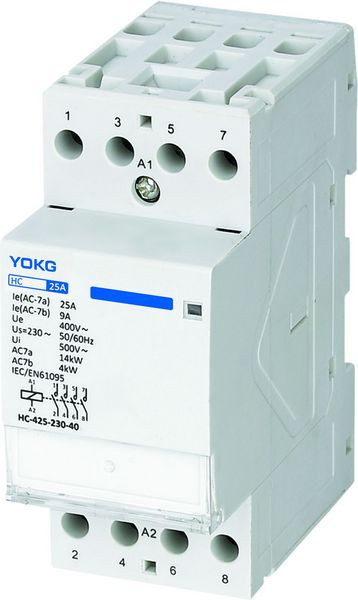

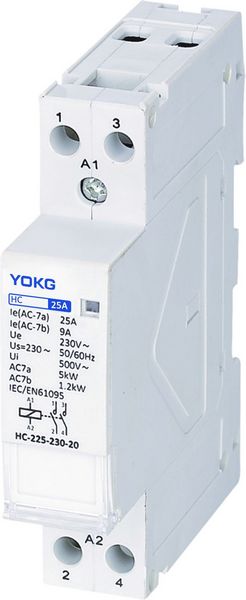

Plastic Silver Copper Modular Contactor 2P 4P 25A 48V 230V For Lighting Control System

System Application:

♦ HC Series AC household contactor (hereinafter contactor) is suitable for using in the circuits up to the rated working voltage 400 V AC 50 HZ (or 60 HZ) , rated working current up to 63A, to control household electric appliances and low inductive reactance load and micro inductive reactance load of similar usage, can also bounded to control household motor load of which the controlling power needs to be relatively decreased.

♦ This products applies to places such as household, hotels, apartments, etc to realize the automation of large-scale produced household electric appliances.

♦ In compliance with IEC61095, GB17885

Model and Definition:

Normal Operating Conditions and Installation Condition:

♦ The ambient air temperature: -5～+40℃, Average not more than +35℃ within 24 hours.

♦ Altitude(m): Not exceed 2000 meters

♦ Atmospheric conditions: When the highest temperature is +40℃, the air relative humidity should not be higher than 50%. The higher relative humidity should be allowed at the lower temperature, for instance, 90% humidity when 20 ℃. Special measures should be taken when condensate dew happens occasionally due to temperature changes.

♦ Pollution degree: Class 2

♦ Installation category: II

♦ Mounting: On Din rail TH35-7.5 mounting rail installation

♦ Protection degree: IP20

General:

Appointed operation performance:

Making and breaking Capacity:

Products:

♦ Contactors are modular control appliances of novel structure, small volume. Its characteristic includes din-rail installation, modular size, beautiful design, and safety. It can apply inversion structure and be combined with mini circuit breaker in lighting box.

♦ It applies good insulation material, which improve the safety index.

♦ It has good appearance and low noise and is suitable for hotel and hospital, etc.

HC Home Contactor Order Code:

    We, Yueqing Zeyi electrical Co., Ltd. is intended on creating a professional contactor manufacturing enterprise. Adhere to this business concept, have been focusing on the contactor industry for nearly 20 years, concentrate on the design and manufacture of CJX2 (WC1) series products. Now we can provide more than 100 kinds of AC and DC contactors.

   Especially our HC series modular contactor, can be comparable to the performance of famous brand products.

   Company’s products have all obtained 3C, CE certification, and has passed the German TUV authority CB test.

   Quality is the soul of the enterprise, talent is the foundation. We believe that the high quality products and the best humanized service are the cornerstone of our success.

    Focus on product design and manufacturing, become professional OEM, ODM supplier. Can provide ultra-cost-effective OEM, ODM services for all kinds of brand enterprises. Has established good business relations with lots of excellent domestic low-voltage electrical enterprise groups.

   Through years of efforts, the company's products have been widely used in machine tools, machinery, textile, chemical, petroleum, metallurgy, construction, railway, shipping, communications, electric power and household appliances and other

industries, the products are exported to more than 50 countries and regions in the world.

   Carry on the past, hand in hand, we sincerely hope to cooperate with you, create brilliant!
