Electromagnetic Type Residual Current Circuit Breaker 4 Pole 63A 30ma RCCB

Ask Lasest Price
Brand Name :	YOKG
Model Number :	F360 F362 F364
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T
Supply Ability :	100000pcs per Month
Delivery Time :	15days or Depends on ordering QTYS

Add to Cart

Product Details
Company Profile

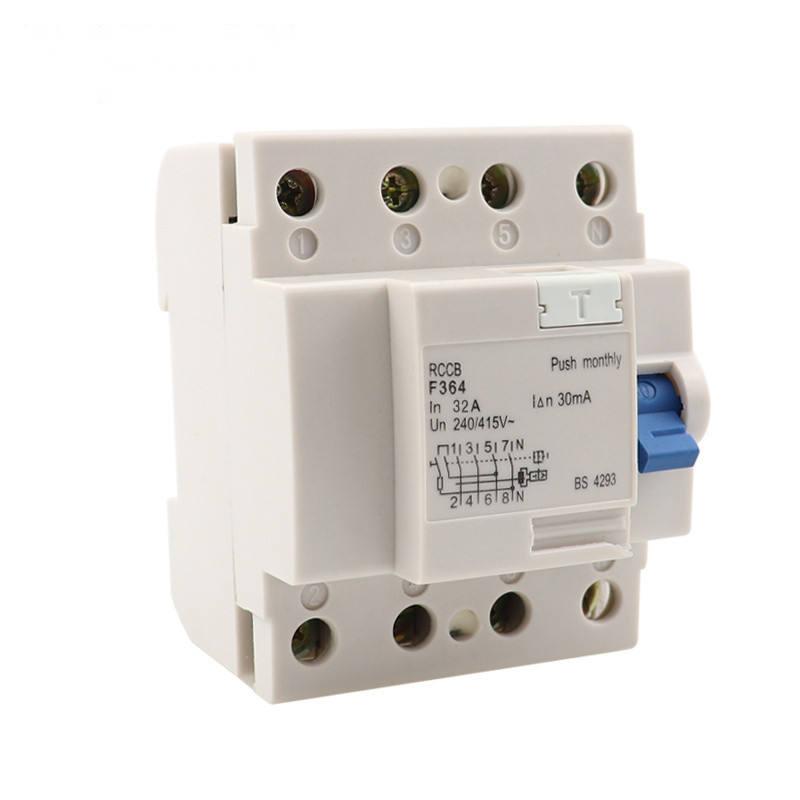

Electromagnetic Type Residual Current Circuit Breaker 4 Pole 63A 30ma RCCB

Electromagnetic type Residual Current Circuit Breaker 4 Pole 63A 30ma RCCB

Application:

F360 series residual current circuit breakers (RCCB) are in accordance with the standards of IEC1008-1 and GB16916.1-1997. They are applied to the circuit of AC 50/60Hz, 2P 240V, 4P 415V. They are mainly used for preventing electric fire and personal casual accidents caused by personal electric shock or leakage. They are current-operated and fast leakage protectors of pure electromagnetic types. They can break off fault circuit rapidly in order to avoid occurrence of accidents.The function of switch won't be influenced by ambient temperature and lighting.

Number of Poles	2P,4P
Rated Current (A)	16,20,25,32,40,50,63,80,100
Rated Residual Operating Current (IΔn)(mA)	10,30,100,300,500
Rated Residual Non-operation Current (IΔno)(mA)	≤0.5 IΔn
Rated Voltage (V)	AC 230/240
Rated Voltage (V)	AC 400/415
Residual Operating Current Scope	0.5IΔn~IΔn
Residual Current Off-time	≤0.3S
Endurance	4000
Protection Degree	IP20

FAQ:

1.How can we get quotations?

A:We will send quotations within 24 hours after getting your enquiry. Urgent need you can call us or send us messages via Whatsapp.

2.Can we get sample to check your quality?

A:All items sample are available.

3.Can you do the design for packing?

A:Yes. We have ad team can assist you design inner and outer box if need.

4.What is your terms of delivery?

A:Normally we work on EXW FOB.
