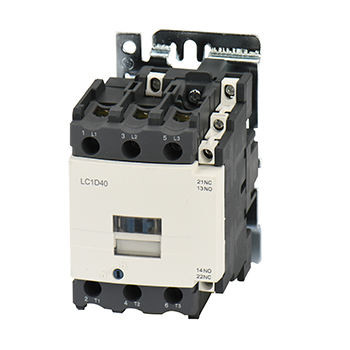

Product Description:
The contactor is rated for an insulation voltage of 690VAC,
ensuring safe and efficient operation even in high voltage
environments. It is available with either rail or screw mounting
options, allowing for easy installation and flexibility in design.
The contactor is also equipped with three auxiliary contacts,
providing additional functionality and control options.
The rated operational voltage of this 3 Pole AC Contactor is
220VAC, making it suitable for a wide range of applications. It is
capable of handling a rated operational current of up to 60A,
providing ample power for most applications. The contactor is also
available in other current ratings, including 20A, 32A, 40A, 50A,
80A, and 125A, allowing for customization to meet specific
application requirements.
In summary, the 3 Pole AC Contactor is a reliable and versatile
device suitable for controlling 3 phase circuits in a wide range of
applications. It is rated for an insulation voltage of 690VAC, and
is available with either rail or screw mounting options. With three
auxiliary contacts and a rated operational current of up to 60A, it
provides ample control and power for most applications. Other
current ratings are also available, including 20A, 32A, 40A, 50A,
80A, and 125A.
Features:
- Product Name: 3 Pole AC Contactor
- Protection Level: IP20
- Rated Current: 20A, 32A, 40A, 50A, 60A, 80A, 125A
- Mechanical Endurance: 3600/h
- Number of Poles: 3
- Insulation Voltage: 690VAC
- IEC60947-4 compliant
- 1NO+1NC
- 3 phase
Technical Parameters:
| Insulation Voltage | 690VAC |
| Installation Method | Rail or Screw |
| Number of Poles | 3 |
| Power Frequency | 50/60Hz |
| Rated Voltage | 220VAC |
| Rated Insulation Voltage | 690VAC |
| Rated Current | 20A,32A,40A,50A,60A,80A,125A |
| Rated Operational Voltage | 220VAC |
| Rated Operational Current | 60A |
| Mechanical Endurance | 3600/h |
| Contact Configuration | 1NO+1NC |
Applications:
The 3 Pole AC Contactor products are designed to provide a reliable
and long-lasting solution for controlling 3 phase electrical
circuits. These products have a rated operational voltage of 220VAC
and come in a variety of rated current options including 20A, 32A,
40A, 50A, 60A, 80A, and 125A.
The installation method for these products can be either Rail or
Screw, depending on the user's preference. The products have a
rated voltage of 220VAC and a rated operational current of 60A.
The 3 Pole AC Contactor products can be used in a variety of
application occasions and scenarios. They are ideal for controlling
3 phase motors, lighting systems, air conditioning systems, and
other electrical devices that require reliable and efficient
control. These products are commonly used in industrial and
commercial settings, such as factories, warehouses, and office
buildings.
